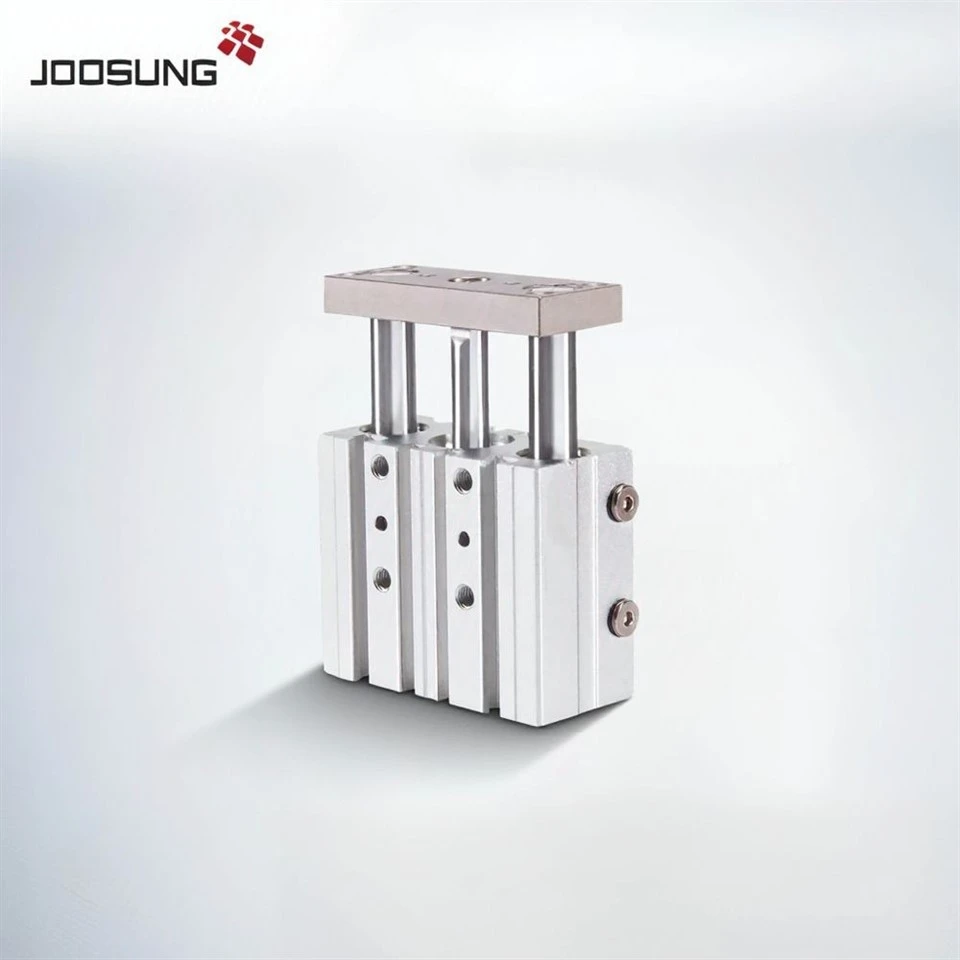

ʻO kaTCL Series Alakaʻi Pneumatic Cylinderua hana ʻia i nā kūlana JIS a hoʻohuiʻekolu lāʻau alakaʻii hana ʻia me ke kila hili kūikawā. Hāʻawi ia i nā koho laina laina a keleawe paha, hāʻawi ʻoi aku ka maikaʻitorsional rigidity, kaha hoʻouka radial, akū'ē -holo paʻa, ho'opili 'ia nā mea a pau i loko o ka pahu -pa'ipa'i ultra e hui pū ana i nā 'āpana ho'okele a me ke alaka'i 'ole.
He mea maikaʻi nā alakaʻi amo pōpopo no -neʻe kū pololei pololei me ka liʻiliʻi liʻiliʻi, ʻoiai ʻoi aku ka maikaʻi o nā alakaʻi hoʻoheheʻe keleawe ma lalo o ka haʻahaʻa radial a hōʻike i ka pale ʻana i ka hopena i pāpālua. Aia i loko o ka ho'olālā pahu he mau -pili i luna me nā puka ho'onohonoho pololei a me 'ehā mau pahu kau ho'ololi no ka ho'okomo pololei-ki'eki'e.
|
Pehea e kauoha ai i ka TCL Series Pneumatic Cylinder |
||||
|
TC |
L |
50 |
30 |
S |
|
Hoʻohālike |
ʻAno hāʻawe |
Ka nui o ka lua |
Paʻi Paʻi Paʻa |
Mākēneki |
|
TC:Tri-rod cylinder(ʻano hana ʻelua) |
L:Hana laina |
12 16 20 25 32 40 50 63 |
S:Me ka magnet |
|
Makemake ʻoe i kahi mea hoʻokele paʻa, alakaʻi ʻia me ke kūpaʻa a me ka pololei?
ʻO kaTCL Series Tri{0}}Rod Guided Cylinderhāʻawi i ka hana paʻa a me ka hoʻohui maʻalahi i loko o ka -hoʻonohonoho hoʻonohonoho ʻokoʻa i kāohi ʻia.
E kelepona iā mākou i kēia manawano nā ʻikepili kikoʻī, nā hiʻohiʻona 3D, a me nā kumukūʻai OEM i hoʻohālikelike ʻia no kāu noi!
|
Hōʻike |
|||||||||||||
|
Ka nui o ka lua (mm) |
6 |
10 |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
|
ʻAno hana |
Hana pālua |
||||||||||||
|
Waiwai |
Ea (e kānana ʻia e 40μm filter element) |
||||||||||||
|
Pumi hana |
0.2~0.7MPa(29~100psi) |
0.15~1.0MPa(22~145psi) |
|||||||||||
|
Paʻi hōʻoia |
1.2MPa(175psi) |
1.5MPa(215psi) |
|||||||||||
|
Degere mahana |
-20~70 |
||||||||||||
|
Laulā māmā mm/s |
50~500 |
30~500 |
50~400 |
||||||||||
|
ʻO ka hoʻomanawanui ʻana i ka hahau |
≤100+10 >100+15 |
||||||||||||
|
ʻAno ʻūnaʻi |
Pāpā |
||||||||||||
|
ʻAʻole -hoʻomanawanui ʻole |
TCL |
- |
±0.08 degere |
±0.07 degere |
±0.06 degere |
±0.05 degere |
±0.04 degere |
||||||
|
TCM |
±0.1 degere |
±0.10 degere |
±0.09 degere |
±0.08 degere |
±0.06 degere |
±0.05 degere |
|||||||
|
Nui awa |
M3×0.5 |
M5×0.8 |
1/8" |
1/4" |
3/8" |
||||||||
|
moʻoHoʻohālike |
Loaʻa nā Models |
|
|
TCL12 Series |
TCL12-5, TCL12-10, TCL12-15, TCL12-20, TCL12-25, TCL12-30, TCL12-35, TCL12-40, TCL12-45, TCL12-50, TCL12-55, TCL12-60 |
|
|
TCL16 Series |
TCL16-5, TCL16-10, TCL16-15, TCL16-20, TCL16-25, TCL16-30, TCL16-35, TCL16-40, TCL16-45, TCL16-50, TCL16-55, TCL16-60 |
|
|
TCL20 Series |
TCL20-5, TCL20-10, TCL20-15, TCL20-20, TCL20-25, TCL20-30, TCL20-35, TCL20-40, TCL20-45, TCL20-50, TCL20-55, TCL20-60 |
|
|
TCL25 moʻo |
TCL25-5, TCL25-10, TCL25-15, TCL25-20, TCL25-25, TCL25-30, TCL25-35, TCL25-40, TCL25-45, TCL25-50, TCL25-55, TCL25-60 |
|
|
TCL32 Series |
TCL32-5, TCL32-10, TCL32-15, TCL32-20, TCL32-25, TCL32-30, TCL32-35, TCL32-40, TCL32-45, TCL32-50, TCL32-55, TCL32-60, TCL32-60, TCL32-60, TCL32-60, TCL32-60, TCL32-60 TCL32-75, TCL32-80 |
|
|
TCL40 moʻo |
TCL40-5, TCL40-10, TCL40-15, TCL40-20, TCL40-25, TCL40-30, TCL40-35, TCL40-40, TCL40-45, TCL40-50, TCL40-55, TCL40-60, TCL40-60, TCL40-60, TCL40-40, TCL40-45 TCL40-75, TCL40-80 |
|
|
TCL50 moʻo |
TCL50-5, TCL50-10, TCL50-15, TCL50-20, TCL50-25, TCL50-30, TCL50-35, TCL50-40, TCL50-45, TCL50-50, TCL50-55, TCL50-60, TCL50-60, TCL50-60, TCL50-60, TCL50-60 TCL50-75, TCL50-80 |
|
|
TCL63 Series |
TCL63-5, TCL63-10, TCL63-15, TCL63-20, TCL63-25, TCL63-30, TCL63-35, TCL63-40, TCL63-45, TCL63-50, TCL63-55, TCL63-60, TCL63-60, TCL63-60, TCL63-60, TCL63-60, TCL63-60 TCL63-75, TCL63-80 |
|
|
TCL80 moʻo |
TCL80-5, TCL80-10, TCL80-15, TCL80-20, TCL80-25, TCL80-30, TCL80-35, TCL80-40, TCL80-45, TCL80-50, TCL80-55, TCL80-60, TCL80-60, TCL80-60, TCL80-60, TCL80-60 TCL80-75, TCL80-80 |
|
